Digital Simulation

TINA's analysis capabilities don't end with analog circuits, but also include a powerful digital circuit simulator engine for digital circuits. TINA solves the logic state equation at each node and displays the results in a special logic analyzer style window where each signal is displayed in a separate coordinate system.

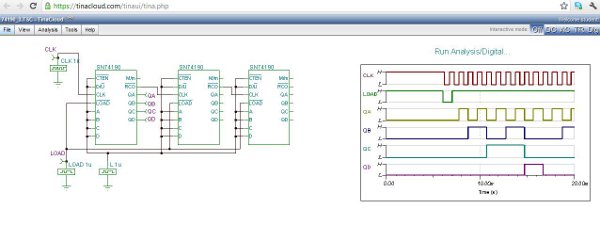

Click the picture to run this circuit online with TINACloud (Select Analysis/Digital...)

Digital Timing Diagram
